INTRODUCING

THE 356

ALUMINUM ALLOY METAL MODEL

Screenshot 2024-05-28 at 11.02_edited.png
Screenshot 2024-05-28 at 10.55_edited.png
Screenshot 2024-05-28 at 10.55_edited.png

ALUMINUM ALLOY 356

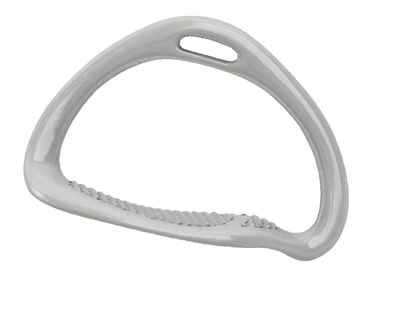

Introducing JSL's metal model, the 356.

​

Cast in a strong, lightweight aluminum alloy, this design features a hollowed underside 'airfoil pocket' for intended lift at race speeds.

​

The curvy bar and wide base offers ultimate rider comfort, supporting the metatarsals of the foot while allowing the toes to grip around the edges of the platform.

PRE-ORDERS STARTING 9/22

356 MODEL PREVIEW

HOW ITS BUILT

​

356 | TENSILE RESULTS



Last Tested: 7/29/2024

2,729.4 lbf peak load per stirrup

Rate of Test: 0.30 in/min

First sign of failure: 2,690.3 lbf​



​

TENSILE RESULTS & IMAGES

Tested by:  Curtis-Wright IMR Test Labs

Lansing, New York

CLICK HERE TO SEE FULL REPORT

Test Setup.JPG
Pre Test View 2.JPG
Post Test View 1.JPEG

A356 Aluminum Alloy

​

A356 aluminum alloy is made up of 92.05% Aluminum, 7% Silicon,0.35% Magnesium, 0.20% Iron, 0.20% Copper, 0.10% Maganese, and 0.10% Zinc. It is lightweight and extremely corrosion-resistant like stainless steel. If needed, A356 aluminum can be used as a substitute for aluminum alloy 6061.

T6 Heat Treatments

​

T6 is a complex heat treatment and requires the aluminum extruded from the extruder to be instantaneously water cooled. The benefits of the more complex T6 process are an increased hardness of 12-15 on the Webster Hardness Scale and other mechanical properties for the casting.

SOURCE | Milwaukee Precision Casting, Inc.
